The Futhark | Character coding | Execution | Example | Program listing | References

The Futhark (Runic alphabet) on a HP-42S calculator

The FUTH program is written for the HP-42s calculator [1] and displays strings of characters from the futhark [2] (also denoted Runic alphabet) as supplied by the user via a two-level menu system. The input characters are in the user interface of the program listed as we would read and pronounce them today.

The program can be seen as an example of addressing of individual pixels of the display of the HP-42s, enabling creation of arbitrary characters displayed as graphical elements. The program makes an extensive use of the built-in menu functionality of the HP-42s, in order to simplify for the everyday user of this eminent program.

N.B. This is a strong candidate for being the silliest-ever program written for a pocket calculator. It does not contain one single arithmetic operation and at the time when I wrote it (summer 1990) I did it merely for the sake of proving that it actually was possible to generate custom-made character maps for the HP-42s (in this case the futhark once used in historic Scandinavia). Nevertheless, I today find this piece of code quite funny.

The futhark

The Old Futhark
Figure 1. The Elder Futhark, used for writing proto-Norse (Swedish: »urnordisk», »urnordiska»), consist of twenty-four runes, often arranged in three rows of eight. The earliest known sequential listing of the full set of 24 runes dates to ca. 400 AD and is found on the Kylver Stone in Gotland, Sweden.

The Danish Futhark
Figure 2. In the 7th century appeared an intermediary form of runes between the Elder Futhark and the Younger Futhark, but there are very few inscriptions. Two of them are the Stentoften Runestone and the Björketorp Runestone. This is the form of the futhark as used in the FUTH program.

Coding of the characters

Each character in the futhark is in the FUTH program contructed from a binary representation of its graphical appearance, in a column-wise build-up where each row of the respective columns is coded as '1' or '0' for white (blank) or black pixels, respectively. The binary column-wise representation is then converted into decimal numbers, as used by the built-in AGRAPH function of the HP-42s. The following example illustrates the construction of the first character »F» of the futhark:



       1 2 3 4 5 6 [col]

   1   X   X   X
   2   X   X   X
   3   X X     X
   4   X     X
   5   X X X
   6   X
   7   X
   8   X
[row]
       | | | | | |__  00000000 [bin] =   0 [dec]
       | | | | |____  00000111 [bin] =   7 [dec]
       | | | |______  00001000 [bin] =   8 [dec]
       | | |________  00010011 [bin] =  19 [dec]
       | |__________  00010100 [bin] =  20 [dec]
       |____________  11111111 [bin] = 255 [dec]


Hence the »F» of the futhark can be encoded in a 6×8-pixel representation as {255,20,19,8,7,0}, where each column code is set by the XTOA command of the HP-42s.

Execution of the program

Start the program by XEQ followed by the menu choice "FUTH". This leaves you with the screen as shown in Fig. 3. (As it looks on my own, quite battered 1988 vintage HP-42s.) Suppose you now wish to enter the »n» rune; in this case proceed with selecting the NIÅST menu block, followed by selecting the N submenu item (Fig. 4). That's it! Repeat for the rest of the characters in the string and press TRAN when finished, leaving you with the displayed corresponding string of rune characters. Additional spaces can be entered using the SPACE menu item. The entire set of characters in the futhark, as implemented in the FUTH program, is displayed in Fig. 5.

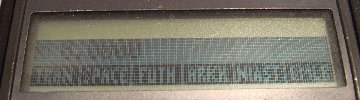

Startup display
Figure 3. Startup display of the FUTH program.

Menu block
Figure 4. The »NIÅST» sub-menu block of the FUTH program.

Menu block
Figure 5. The entire futhark as displayed by the HP-42s!

Example

The Gripsholm Runestone, in 1827 found as one of the thresholds of Gripsholm castle by the runologist Johan G. Liljegren, is one of the most famous runestones commemorating the death of Swedish Vikings who died in the Caliphate, and it is considered to be the most prominent stone raised in commemoration of the ill-fated expedition of Ingvar the Far-Travelled. In Latin letters, the inscription of the stone yields:

Tola let ræisa stæin þennsa
at sun sinn Harald, broður Ingvars.
ÞæiR foru drængila
fiarri at gulli
ok austarla
ærni gafu,
dou sunnarla
a Særklandi.

Translated into English this yields:

Tola had this stone raised
after her son Harald, Ingvar's brother.
They travelled valiantly
far for gold,
and in the east
gave (food) to the eagle.
(They) died in the south
in Serkland.

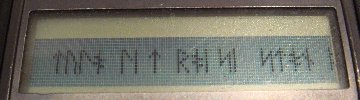

Typed into the FUTH program of the HP-42s, the first line displays as: Tola had this stone raised

Interpretation of the text: The text informs us that they died during a Viking expedition in the East, that is to say across Russia. The expression »fed the eagle» is a kenning for waging war and killing enemies who were left as food for the eagles. The large expedition continued across the Caucasus and into the Caliphate. According to Yngvars saga víðförla, only one ship returned to Sweden in 1042.

The information that Harald's mother Tola raised the stone is interpreted as telling that Tola was a concubine of Ingvar's father, so Ingvar and Harald were half-brothers. According to a different interpretation, Harald and Ingvar were only brothers-in-arms.

Program listing



 000  { 910-BYTE PRGM }
 001  LBL "FUTH"
 002  CF 01
 003  CF 02
 004  0
 005  STO "N"
 006  4
 007  STO "X"
 008  LBL A
 009  1
 010  STO+ "N"
 011  CLX
 012  CLMENU
 013  "TRAN"              [Key for translating into rune characters]
 014  KEY 1 GTO B
 015  "SPACE"             [Key for inserting blank space]
 016  KEY 2 GTO 49
 017  "FUTH"              [Key for first menu block of rune characters]
 018  KEY 3 GTO 20
 019  "ARKH"              [Key for second menu block of rune characters]
 020  KEY 4 GTO 21
 021  "NIÅST"             [Key for third menu block of rune characters]
 022  KEY 5 GTO 22
 023  "BMLR"              [Key for fourth menu block of rune characters]
 024  KEY 6 GTO 23
 025  MENU
 026  STOP
 027  GTO "FUTH"
 028  LBL 20
 029  CLMENU
 030  "F"                 [Key for the "F" rune of the first block]
 031  KEY 2 GTO 30
 032  "U"                 [Key for the "U" rune of the first block]
 033  KEY 3 GTO 31
 034  "TH"                [Key for the "TH" rune of the first block]
 035  KEY 4 GTO 32
 036  MENU
 037  STOP
 038  LBL 21
 039  CLMENU
 040  "A"                 [Key for the "A" rune of the second block]
 041  KEY 2 GTO 33
 042  "R"                 [Key for the "R" rune of the second block]
 043  KEY 3 GTO 34
 044  "K"                 [Key for the "K" rune of the second block]
 045  KEY 4 GTO 35
 046  "H"                 [Key for the "H" rune of the second block]
 047  KEY 5 GTO 36
 048  MENU
 049  STOP
 050  LBL 22
 051  CLMENU
 052  "N"                 [Key for the "N" rune of the third block]
 053  KEY 2 GTO 37
 054  "I"                 [Key for the "I" rune of the third block]
 055  KEY 3 GTO 38
 056  "Å"                 [Key for the "Å" rune of the third block]
 057  KEY 4 GTO 39
 058  "S"                 [Key for the "S" rune of the third block]
 059  KEY 5 GTO 40
 060  "T"                 [Key for the "T" rune of the third block]
 061  KEY 6 GTO 41
 062  MENU
 063  STOP
 064  LBL 23
 065  CLMENU
 066  "B"                 [Key for the "B" rune of the fourth block]
 067  KEY 2 GTO 42
 068  "M"                 [Key for the "M" rune of the fourth block]
 069  KEY 3 GTO 43
 070  "L"                 [Key for the "L" rune of the fourth block]
 071  KEY 4 GTO 44
 072  "R"                 [Key for the "R" rune of the fourth block]
 073  KEY 5 GTO 45
 074  MENU
 075  STOP
 076  LBL 30
 077  1
 078  STO IND "N"
 079  GTO A
 080  LBL 31
 081  2
 082  STO IND "N"
 083  GTO A
 084  LBL 32
 085  3
 086  STO IND "N"
 087  GTO A
 088  LBL 33
 089  4
 090  STO IND "N"
 091  GTO A
 092  LBL 34
 093  5
 094  STO IND "N"
 095  GTO A
 096  LBL 35
 097  6
 098  STO IND "N"
 099  GTO A
 100  LBL 36
 101  7
 102  STO IND "N"
 103  GTO A
 104  LBL 37
 105  8
 106  STO IND "N"
 107  GTO A
 108  LBL 38
 109  9
 110  STO IND "N"
 111  GTO A
 112  LBL 39
 113  10
 114  STO IND "N"
 115  GTO A
 116  LBL 40
 117  11
 118  STO IND "N"
 119  GTO A
 120  LBL 41
 121  12
 122  STO IND "N"
 123  GTO A
 124  LBL 42
 125  13
 126  STO IND "N"
 127  GTO A
 128  LBL 43
 129  14
 130  STO IND "N"
 131  GTO A
 132  LBL 44
 133  15
 134  STO IND "N"
 135  GTO A
 136  LBL 45
 137  16
 138  STO IND "N"
 139  GTO A
 140  LBL B
 141  0
 142  STO "Y"
 143  CLLCD
 144  LBL C
 145  6
 146  STO+ "X"
 147  1
 148  STO+ "Y"
 149  RCL "Y"
 150  RCL "N"
 151  X=Y?
 152  GTO 50
 153  CLA
 154  RCL IND "Y"
 155  GTO IND ST X
 156  LBL D
 157  0
 158  XTOA
 159  5
 160  RCL "X"
 161  AGRAPH
 162  GTO C
 163  LBL 01              [Enter codes for drawing the "F" rune]
 164  255                 [bin: 11111111]
 165  XTOA
 166  20                  [bin: 00010100]
 167  XTOA
 168  19                  [bin: 00010011]
 169  XTOA
 170  8                   [bin: 00001000]
 171  XTOA
 172  7                   [bin: 00000111]
 173  XTOA
 174  GTO D
 175  LBL 02              [Enter codes for drawing the "U" rune]
 176  255                 [bin: 11111111]
 177  XTOA
 178  1                   [bin: 00000001]
 179  XTOA
 180  2                   [bin: 00000010]
 181  XTOA
 182  12                  [bin: 00001100]
 183  XTOA
 184  240                 [bin: 11110000]
 185  XTOA
 186  GTO D
 187  LBL 03              [Enter codes for drawing the "TH" rune]
 188  255                 [bin: 11111111]
 189  XTOA
 190  36                  [bin: 00100100]
 191  XTOA
 192  24                  [bin: 00011000]
 193  XTOA
 194  GTO D
 195  LBL 04              [Enter codes for drawing the "A" rune]
 196  20                  [bin: 00010100]
 197  XTOA
 198  20                  [bin: 00010100]
 199  XTOA
 200  255                 [bin: 11111111]
 201  XTOA
 202  40                  [bin: 00101000]
 203  XTOA
 204  40                  [bin: 00101000]
 205  XTOA
 206  GTO D
 207  LBL 05              [Enter codes for drawing the "R" rune]
 208  255                 [bin: 11111111]
 209  XTOA
 210  17                  [bin: 00010001]
 211  XTOA
 212  42                  [bin: 00101010]
 213  XTOA
 214  74                  [bin: 01001010]
 215  XTOA
 216  132                 [bin: 10000100]
 217  XTOA
 218  GTO D
 219  LBL 06              [Enter codes for drawing the "K" rune]
 220  255                 [bin: 11111111]
 221  XTOA
 222  8                   [bin: 00001000]
 223  XTOA
 224  4                   [bin: 00000100]
 225  XTOA
 226  2                   [bin: 00000010]
 227  XTOA
 228  1                   [bin: 00000001]
 229  XTOA
 230  GTO D
 231  LBL 07              [Enter codes for drawing the "H" rune]
 232  34                  [bin: 00100010]
 233  XTOA
 234  20                  [bin: 00010100]
 235  XTOA
 236  255                 [bin: 11111111]
 237  XTOA
 238  20                  [bin: 00010100]
 239  XTOA
 240  34                  [bin: 00100010]
 241  XTOA
 242  GTO D
 243  LBL 08              [Enter codes for drawing the "N" rune]
 244  4                   [bin: 00000100]
 245  XTOA
 246  8                   [bin: 00001000]
 247  XTOA
 248  255                 [bin: 11111111]
 249  XTOA
 250  16                  [bin: 00010000]
 251  XTOA
 252  32                  [bin: 00100000]
 253  XTOA
 254  GTO D
 255  LBL 09              [Enter codes for drawing the "I" rune]
 256  255                 [bin: 11111111]
 257  XTOA
 258  GTO D
 259  LBL 10              [Enter codes for drawing the "Å" rune]
 260  32                  [bin: 00100000]
 261  XTOA
 262  16                  [bin: 00010000]
 263  XTOA
 264  255                 [bin: 11111111]
 265  XTOA
 266  8                  [bin: 00000100]
 267  XTOA
 268  4                  [bin: 00000010]
 269  XTOA
 270  GTO D
 271  LBL 11              [Enter codes for drawing the "S" rune]
 272  63                  [bin: 00111111]
 273  XTOA
 274  16                  [bin: 00010000]
 275  XTOA
 276  8                   [bin: 00001000]
 277  XTOA
 278  4                   [bin: 00000100]
 279  XTOA
 280  254                 [bin: 11111110]
 281  XTOA
 282  GTO D
 283  LBL 12              [Enter codes for drawing the "T" rune]
 284  4                   [bin: 00000100]
 285  XTOA
 286  2                   [bin: 00000010]
 287  XTOA
 288  255                 [bin: 11111111]
 289  XTOA
 290  2                   [bin: 00000010]
 291  XTOA
 292  4                   [bin: 00000100]
 293  XTOA
 294  GTO D
 295  LBL 13              [Enter codes for drawing the "B" rune]
 296  255                 [bin: 11111111]
 297  XTOA
 298  145                 [bin: 10010001]
 299  XTOA
 300  153                 [bin: 10011001]
 301  XTOA
 302  170                 [bin: 10101010]
 303  XTOA
 304  68                  [bin: 01000100]
 305  XTOA
 306  GTO D
 307  LBL 14              [Enter codes for drawing the "M" rune]
 308  7                   [bin: 00000111]
 309  XTOA
 310  8                   [bin: 00001000]
 311  XTOA
 312  255                 [bin: 11111111]
 313  XTOA
 314  8                   [bin: 00001000]
 315  XTOA
 316  7                   [bin: 00000111]
 317  XTOA
 318  GTO D
 319  LBL 15              [Enter codes for drawing the "L" rune]
 320  255                 [bin: 11111111]
 321  XTOA
 322  1                   [bin: 00000001]
 323  XTOA
 324  2                   [bin: 00000010]
 325  XTOA
 326  4                   [bin: 00000100]
 327  XTOA
 328  8                   [bin: 00001000]
 329  XTOA
 330  GTO D
 331  LBL 16              [Enter codes for drawing the "R" rune]
 332  224                 [bin: 11100000]
 333  XTOA
 334  16                  [bin: 00010000]
 335  XTOA
 336  255                 [bin: 11111111]
 337  XTOA
 338  16                  [bin: 00010000]
 339  XTOA
 340  224                 [bin: 11100000]
 341  XTOA
 342  GTO D
 343  LBL 18              [Enter codes for drawing blank space]
 344  0                   [bin: 00000000]
 345  XTOA
 346  0                   [bin: 00000000]
 347  XTOA
 348  0                   [bin: 00000000]
 349  XTOA
 350  0                   [bin: 00000000]
 351  XTOA
 352  GTO D
 353  LBL 49
 354  18
 355  STO IND "N"
 356  GTO A
 357  LBL 50
 358  CLST
 359  END


References

[1] The HP-42s calculator was manufactured by Hewlett-Packard Inc. between 1988 and 1995, and it had 7.2 kB of user memory. The full specification for this model can be found at the web site of The Museum of HP Calculators, http://www.hpmuseum.org/, section on the HP-42s.

[2] The origin of the futhark can be summarized by the following excerpts from http://www.futhark.com/: "The first step in understanding rune lore is the understanding of the concept rune. Runes were in use by the Nordic and Germanic tribes of Northern Europe. A rune is not merely a letter in an old Germanic alphabet, but it bears the primary definition of "secret" or "mysteries." There were many different runic alphabets in use throughout Northern Europe over the centuries. The most common is the Germanic or Elder Futhark. This system may have begun as early as 200 B.C.E. The Elder Futhark contains 24 letters divided into three groups of eight, called Ætt (aettir, plural). The first eight is called Freyja's Ætt, the second Heimdall's Ætt and the third Tyr's Ætt."

Return to previous page

Leave a message

Your name:

Your email: (required)

Message:

Generated by ::emailform::

Last modified Wednesday 15 Feb 2023
